XD Standard Helidecks

XD Standard Helidecks

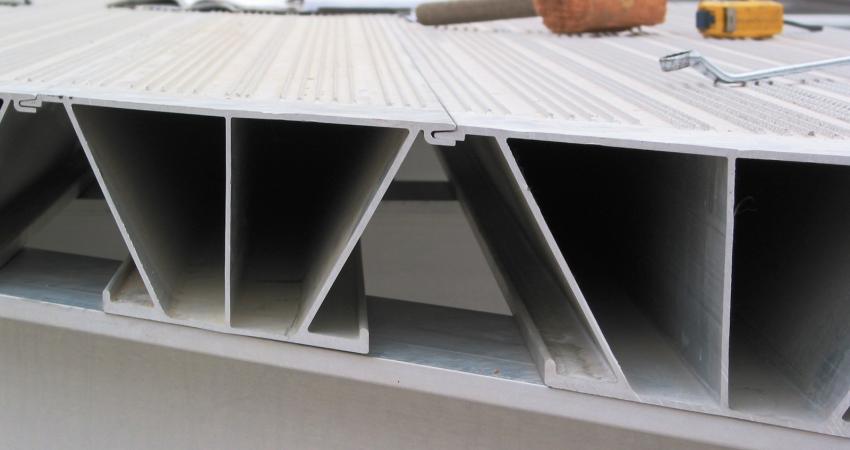

Our XD Standard helideck is an all-aluminium helideck with all the features of the XE Enhanced Safety helideck but without its passive fire suppression system. The top surface of this helideck is flat and non-perforated and incorporates a non-slip pattern which is etched and milled into the decking. The decks are fully pre-fabricated and shipped in containers to you for local assembly under our supervision.

XD Standard Helidecks

Modular Design

Weld free, modular construction ensures faster fabrication. Bolted connections allow quick assembly, fewer inspection hold-points and easy replacement of damaged sections. We manufacture the deck and ship them in containers to wherever you like. Our supervisors will make site assembly an easy task.

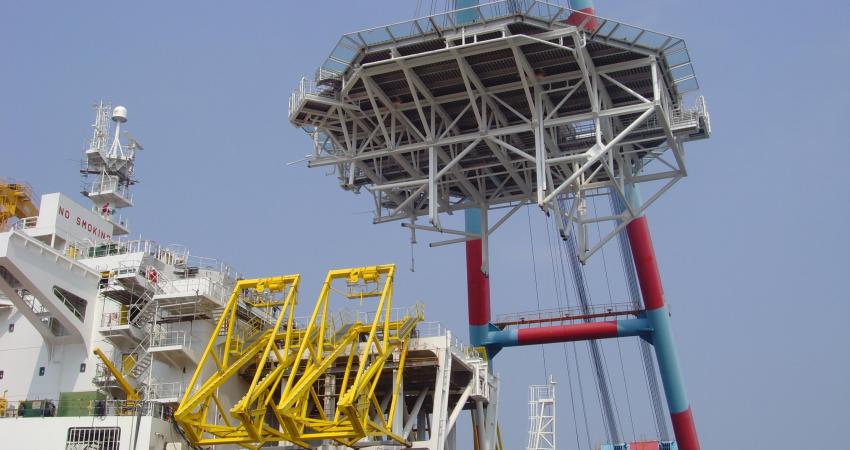

Modular sections mean the deck is easier and lighter to transport, assemble and lift into place.

PRECISION FABRICATION

Fabrication and Assembly

Weld free, modular construction ensures faster fabrication. Bolted connections allow quick assembly, fewer inspection hold-points and easy replacement of damaged sections. We manufacture the deck and ship them in containers to wherever you like. Our supervisors will make site assembly an easy task.
A typical large helideck can be assembled in approximately three weeks. Contrast this with a usual steel helideck assembly time of three months.
~3 weeks
TYPICAL SITE ASSEMBLY
Zero
WELDS ON SITE
Zero
SPECIAL TOOLS REQUIRED

ENGINEERING ADVANTAGES

Features

Light Weight

The standard helideck weighs about 40% of an equivalent steel helideck

Modular, weld-free assembly

Weld free, modular construction ensures faster fabrication. Bolted connections allow quick assembly, fewer inspection hold-points and easy replacement of damaged sections. We manufacture the deck and ship them in containers to wherever you like. Our supervisors will make site assembly an easy task.

Faster Installation

A typical large helideck can be assembled in approximately three weeks. Contrast this with a usual steel helideck assembly time of three months.

Cost Effective

An aluminium helideck is a good investment. Not only will its residual value appreciate over time, it can be reused several times, as it will usually outlast the structure it is initially placed on. The purchase of an aluminium deck is also low in comparison to steel since the higher per-ton cost of aluminium is offset by the lower tonnage used and the savings in fabrication time.

WEIGHT SAVINGS

Light Weight

The standard helideck weighs about 40% of an equivalent steel helideck

HELICOPTER

DECK DIAMETER

ALUMINIUM (PANCAKE)

STEEL (PANCAKE)

S-76

16 m

13 MT

34 MT

EC225

19.5 m

19 MT

60 MT

S-92

20.88 m

21 MT

65 MT

SPECIFICATIONS

Technical Information

Typical Design Standards

  • UKCAA CAP437/USCG/ICAO, or per customer specs
  • Structural design to BS EN 1999/Classification society requirements
  • Other operational standards in accordance with relevant Civil Aviation Authority regulations

Materials

  • Primary structure in AA6082T6/equal
  • Secondary structure in AA6082T6/equal
  • All fasteners SS316 (A4-80)
  • Safety net infill in marine grade aluminium alloy
  • Helicopter tie-downs in marine aluminium alloy

Fabrication & Assembly

  • Deck is shipped in containers in fully pre-fabricated, knocked down form.
  • Assembly requires no special tools and no welding
  • Only bolting and minor trimming required
  • Weld free design and construction

Typical Helideck Package

  • Aluminium main beams
  • Standard heli-decking
  • Perimeter safety net system
  • Helicopter tie-downs
  • Perimeter drainage and gutters
  • Built in cable management
  • All fasteners, brackets and joints
  • Special transition joints for mating with steel
  • Full documentation package with approvals
  • Assembly and installation supervision
  • Classification society/Civil Aviation approvals

Optional equipment

  • Header packages for perimeter gutters
  • Aluminium support frame for ‘pancake’
  • Access and fire-fighting platforms and stairs
  • DIFFS (Deck Integrated Fire Fighting System)
  • Heat tracing and de-icing systems
  • Lighting system
  • Helideck Monitoring System (HMS)
PERFORMANCE

Fire Resistant

Both models of our helidecks have been live fire tested in the presence of major Classification bodies and certified ‘equal to steel’.

Stay Dry, Non-slip Surface

No weld distortions on surface; the aluminium decking top is serrated and cross-milled and tested to provide a permanent non-slip grip according to UK CAA CAP437 requirements. This non-slip surface is excellent and will last the lifetime of the deck and there is no need for further re-testing of the surface for the life of the deck.
PRODUCT FAMILY

Our Helidecks

Our XD Standard helideck is an all-aluminium helideck with all the features of the XE Enhanced Safety helideck but without its passive fire suppression system.

XD Standard

Our XD Standard helideck is an all-aluminium helideck with all the features of the XE Enhanced Safety helideck but without its passive fire suppression system.
You’re viewing this.

XE Enhanced Safety™

XE Enhanced Safety™ Helideck – A patented, passive fire-retarding system.
XE Enhanced Safety →

Documentation

Download the latest brochures

AOPL Brochure

Download

Commentary on SOLAS Regulations

Download

Basis of Design for XE Enhanced Safety™ Helideck

Download

AOPL Helideck GA Layout

Download

Fire Test Video on XE Enhanced Safety™ Helideck

Download

AOPL 公司简介

Download

Enquiries

Specifying an XD for an upcoming project?

Tell us about the platform, helicopter type and operating standard. We'll come back to you within two working days.
